Metallic Silicon/Silicon Wafer/Silicon Ingot
SN Materials has the world's quality manufacturing and supply.

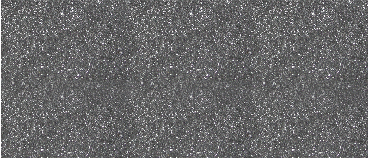

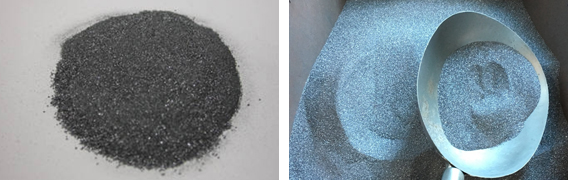

Metallic Silicon
(MG-Si)
We produce and provide the best quality products.
Metallic silicon is used as a material for the solar energy production as well as polysilicon, organic silicon, metal works, and alloy.
Product
- Metal Silicon(For Poly Silicon)
| Spec | Si | Fe | Al | Ca |
|---|---|---|---|---|
| Min % | Max % | Max % | Max % | |
| #1501 | 99.69 | 0.15 | 0.15 | 0.01 |
| #2202 | 99.58 | 0.2 | 0.2 | 0.02 |
| #3303 | 99.37 | 0.3 | 0.3 | 0.03 |
| #421 | 99.3 | 0.4 | 0.2 | 0.1 |
| #441 | 99.1 | 0.4 | 0.4 | 0.1 |
| #551 | 98.9 | 0.5 | 0.5 | 0.1 |

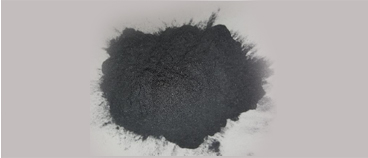

- Micro Silica Powder (-50um)
| Si | Fe | Al | Ca | |
|---|---|---|---|---|
| 98.8~99.2% | 0.5a~1.0% | 0.2~0.3% | <0.1% | |
| Type 1: -50um Type 2: -30um |
||||

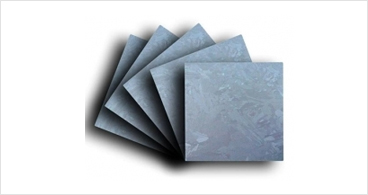

Silicon Wafer
We produce the world's best multi-crystal wafer.
With our high-efficient wafer manufacturing technology, the silicon wafer is made from sliced forms of ingot for the efficient transference of heat.
Product

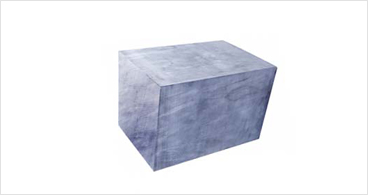

Multi Brick/Wafer
- Years of manufacturing career and technical team
- Stable supply chain of high purity poly-silicon
- Manufactured in Korea → Possible to reach various market
| Parameter | Unit | Proposal Spec. | Metrology |
|---|---|---|---|
| Conductivity Type / Dopant | - | P - Type / Boron | Type Tester |
| Resistivity | Ω•㎝ | 1.0 ~ 3.0 | SEMILAB |
| Minority Carrier Lifetime | ㎲ | ≥ 2.0 | KOBELKO |
- High efficiency and strong performance
- Long minority carrier lifetime
- Low metal impurity
- Complete crystalline structure
| Parameter | Unit | Proposal Spec. | Metrology |
|---|---|---|---|
| Conductivity Type / Dopant | - | P - Type / Boron | - |
| Resistivity | Ω•㎝ | 1.0 ~ 3.0 | Inspection sys. |
| Minority Carrier Lifetime | ㎲ | ≥ 1.0 | Inspection sys. |

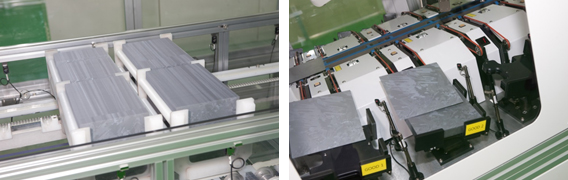

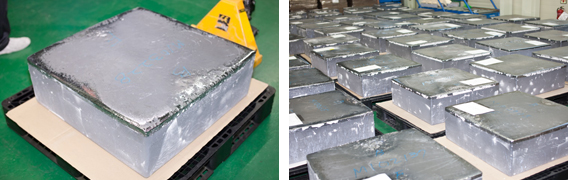

Silicon Ingot
We have the best production technology for ingot that may be used for high-efficient wafer manufacturing.
Silicon ingot is produced by melting and reforming the polysilicon, which is the main material for solar energy technology, into a rectangular form. This is used in sliced forms to be produced into wafers for the use in solar energy technology.
